B8LCR – THAI TECHNIC

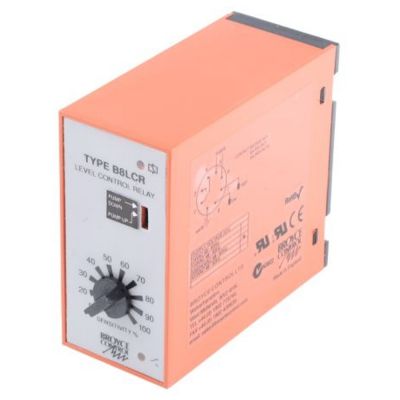

B8LCR

  • Conductive Liquid Level Controller
  • Adjustable sensitivity
  • Selectable Pump Up/Pump Down modes
  • SPDT Relay output
  • 8-pin, Plug-in

The unit is designed to control the maximum and/or minimum levels of conductive liquids (user selectable via front switch). Two modes of operation are available:

Pump-Up mode – With both probes uncovered, the relay energises allowing the controlled pump to start filling the tank/container. When the liquid reaches the upper probe, the relay de-energises and pump stops.

Pump-Down mode – With both probes covered, the relay remains energised allowing the controlled pump to run and commence emptying the tank/container. When the liquid reaches the bottom probe, the relay de-energises and pump stops.
